UGREEN MM137 DP To HDMI Female Converter(1080p)

In-Depth Details:

1. Design and Build:

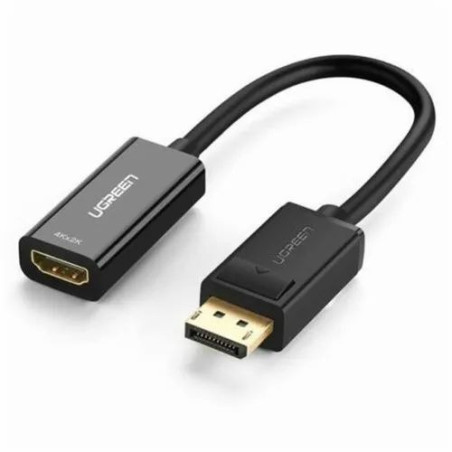

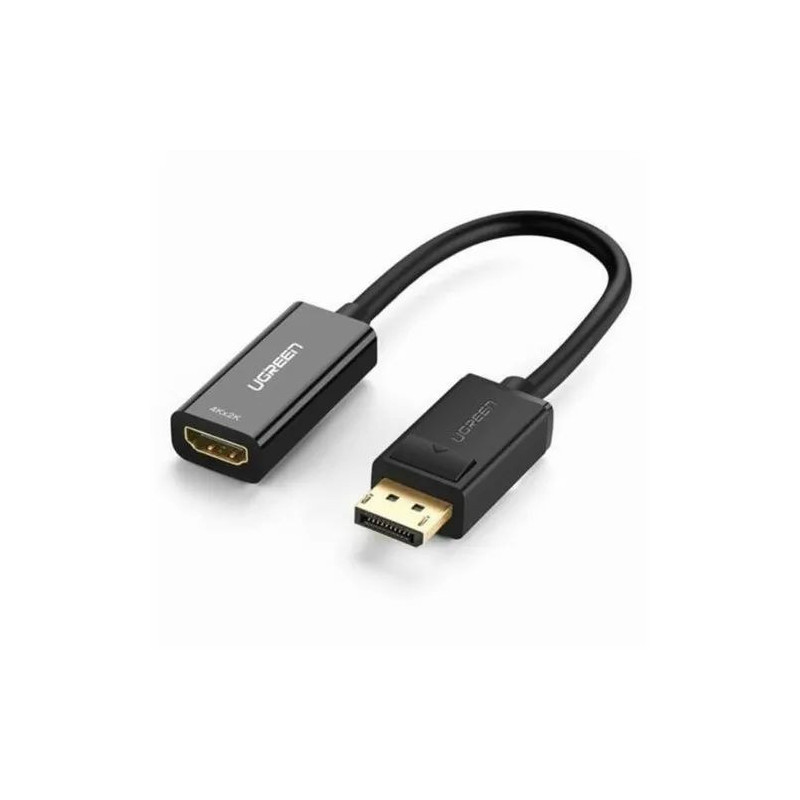

The UGREEN MM137 (40362) features a compact and durable plastic housing with a short built-in cable. The connectors are gold-plated to resist corrosion and enhance signal integrity. The HDMI female port allows users to connect a standard HDMI cable to a DisplayPort source.

2. Video Resolution:

This adapter supports a maximum resolution of 1920x1080 at 60Hz, making it suitable for most standard displays including monitors, TVs, and projectors. It does not support 4K output, which differentiates it from higher-end adapters.

3. Audio-Video Transmission:

The converter supports both video and audio transmission, assuming the DisplayPort source supports audio output. Some older graphics cards or configurations may require manual enabling of audio over DisplayPort.

4. Directionality:

It is unidirectional, meaning it only works from DisplayPort (source) to HDMI (display). It will not function if used in the reverse direction (i.e., HDMI source to DP display).

5. Plug and Play Functionality:

No software or drivers are needed for installation. It functions instantly once plugged into compatible hardware. This makes it ideal for quick setup in office, home, or educational environments.

6. Compatibility:

Works with devices such as:

• Laptops or desktops with DisplayPort output (including mini-towers, workstations)

• External displays like HDMI-enabled TVs, monitors, and projectors

It does not work with HDMI source devices like gaming consoles or DVD players, as those do not output via DisplayPort.

7. Use Case Scenarios:

Ideal for:

• Connecting a DisplayPort-equipped PC to an HDMI monitor or projector

• Setting up dual displays with extended or mirrored screens

• Use in meetings, classrooms, and entertainment systems that require HDMI connectivity from PCs
