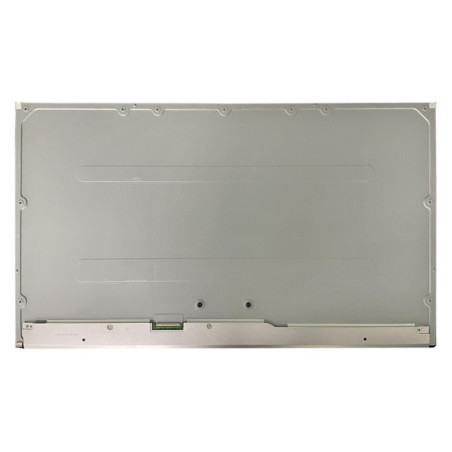

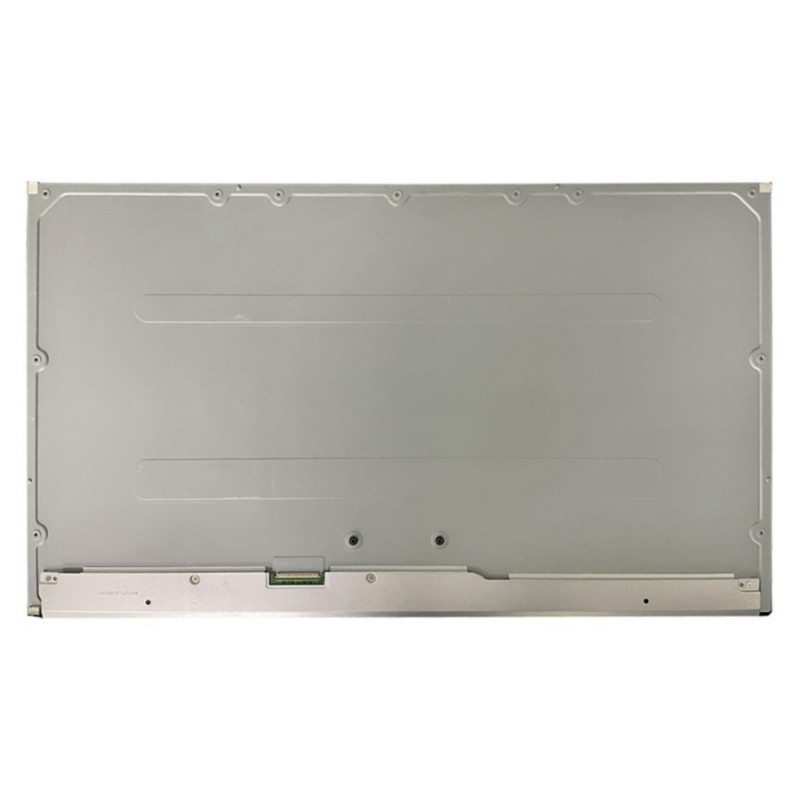

27" AIO M270HCJ-L5B screen

In-Depth Details

• Model: M270HCJ-L5B — a 27-inch LCD display panel used in various All-in-One (AIO) desktop systems, particularly in consumer and commercial-grade devices.

• Display Size: Diagonal size of 27 inches, designed for large-format desktop setups offering immersive screen real estate.

• Resolution: 1920x1080 (Full HD) for sharp visuals in productivity, media, and general computing tasks.

• Panel Type:

  • IPS (In-Plane Switching) technology

  • Offers superior color consistency and wide viewing angles (up to 178° horizontal and vertical

• Connector Interface:

  • Uses a 30-pin eDP (Embedded DisplayPort) interface

  • High-speed data transmission with reduced cable complexity

• Color Depth & Gamut:

  • Typically 16.7 million colors (6-bit + FRC)

  • Covers standard sRGB color space, suitable for general media and office tasks

• Brightness: Around 250–300 nits, adequate for indoor environments

• Contrast Ratio: 1000:1 typical static contrast for clear differentiation between light and dark content

• Refresh Rate: Standard 60Hz refresh rate—sufficient for general desktop use, streaming, and non-gaming tasks

• Backlight Type:

  • WLED (White LED) backlight

  • Energy-efficient and evenly distributed brightness

• Mounting & Assembly:

  • Designed to be integrated into AIO chassis or large screen enclosures

  • Bezel-less or thin-bezel options depending on housing design

• Physical Fit:

  • Must match OEM specifications for mounting points, cable location, and display frame

  • Often secured within plastic/metal brackets in AIO units

• Common Usage: Found in brands such as HP, Lenovo, Dell, Acer, and white-label AIO PCs

• Replacement Note:

  • Check full part number and panel version before ordering

  • Ensure compatibility with your specific AIO model's touch vs. non-touch configuration

  • Touchscreen functionality requires a separate touch digitizer if not pre-integrated
