Samsung Galaxy Tablet S6 Lite Screen Replacement

In-Depth Details

Parts Required

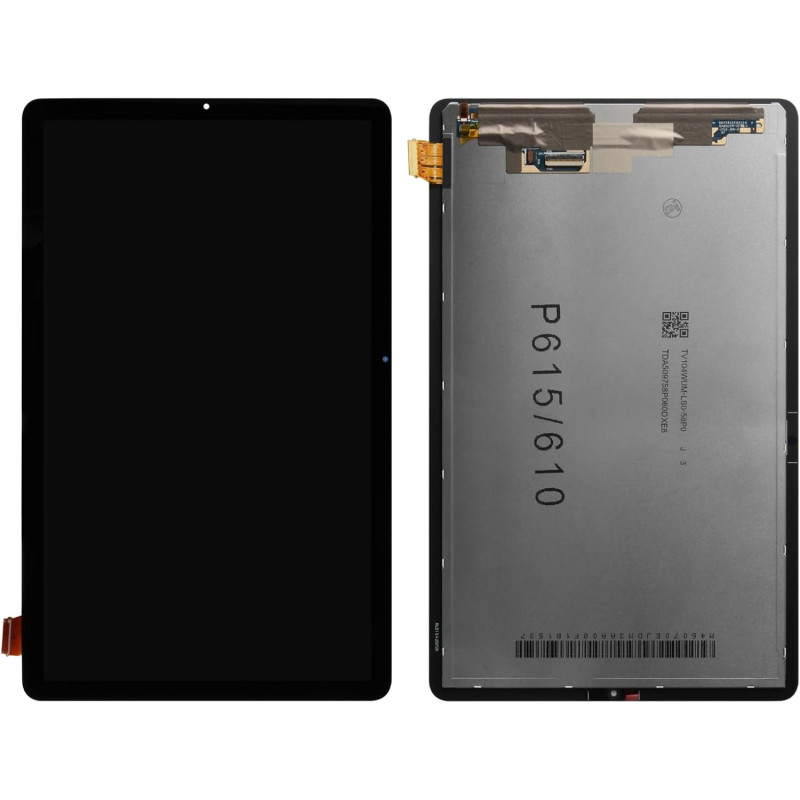

• Replacement Screen: OEM or third-party (AMOLED not available for S6 Lite)

• Adhesive: Pre-cut adhesive strips or B-7000 glue

• Tools:

  • Plastic spudger & pry tools

  • Heat gun/hair dryer

  • Phillips screwdriver (small size)

  • Suction handle (for lifting the screen)

Step-by-Step Process

1. Power Off: Turn off the tablet before starting.

2. Heat the Edges: Use a heat gun (~70°C) to soften adhesive around the screen.

3. Pry Open: Insert a plastic tool to gently separate the screen from the frame.

4. Disconnect Cables: Remove the back cover (if needed) and unplug the display flex cable.

5. Remove Old Adhesive: Clean residual glue from the frame.

6. Install New Screen:

   • Attach new adhesive strips to the frame.

   • Connect the new display flex cable.

   • Press the screen firmly into place.

7. Reassemble: Secure any screws and ensure proper sealing.

Important Notes

• Model Variations:

  • 2020 Model (SM-P610/P615) vs. 2022 Model (SM-P613/P619) – Verify compatibility.

• Touch Functionality: Test touch response before final assembly.

• Water Resistance: Replacement may reduce IP rating (if applicable).

• Warranty: DIY replacement voids warranty; consider authorized service.

Troubleshooting

• No Display: Check flex cable connections.

• Touch Issues: Re-seat the digitizer cable.

• Backlight Problems: Ensure proper power connection.
