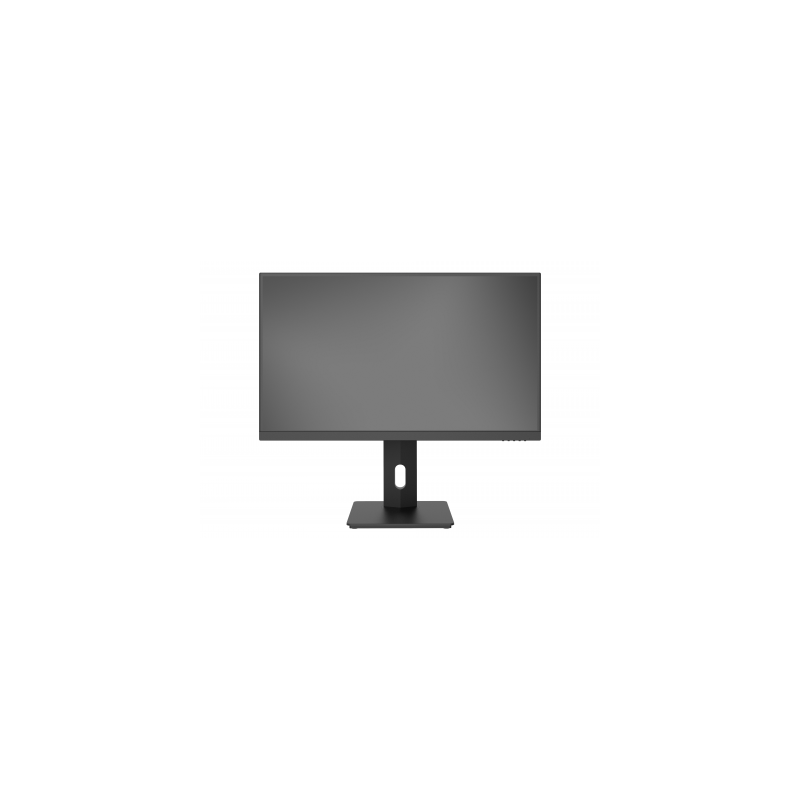

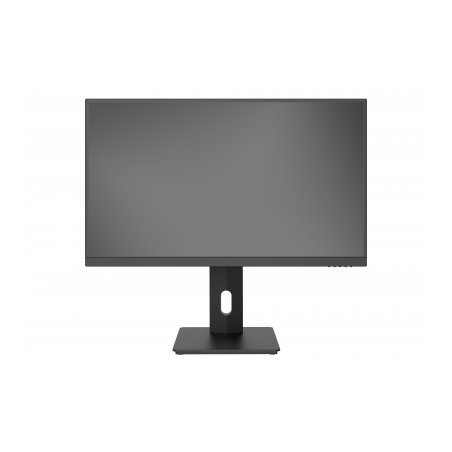

Dahua U401A 27''4K UHD Monitor DHI-LM27-U401A

Display

Model

DHI-LM27-U401A

LCD Technology

IPS

Backlight

ELED

Screen Size

27 inch

Aspect Ratio

16:9

Viewing Size

596.74 (H) × 335.66 (V) mm

Screen-to-Body Ratio

≥90%

Viewing Angle

178° (H) / 178° (V)

Display Mode

Horizontal

Pixel Pitch

0.1554 mm × 0.1554 mm

Pixels Per Inch

163.18

Resolution

3840 (H) × 2160 (V)

Refresh Rate

60 Hz

Display Color

1.07B colors (8 bits+Hi_FRC)

Color Gamut

85% NTSC

Brightness

300 cd/m² (max)

Contrast Ratio

1000:1

Response Time

OD 5 ms

Lifespan

30,000 hrs

Surface Treatment

Haze 25%, 3H

Low Blue Light

Software blue light protection

Function

HDR

Yes

Device Ports

Input Port

1 × HDMI 2.0 (3840 × 2160@60 Hz), 1 × DP 1.4 (3840 × 2160@60 Hz), 1 × TYPE-C (65W), 1 × USB-B, 2 × USB-A

Output Port

1 × Audio out

Power & Environmental Conditions

Power Supply

24 VDC, 5 A

Power Type

power adapter

Power Consumption

25 W (basic), 60 W (typ.), 120 W (ma×)

Standby Power Consumption

≤0.5 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Operating Humidity

10%–85% (RH)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Storage Humidity

5%–90% (RH)

General

Inclined Angle

-3° / 21°

Left and Right Rotation Angle

-30° / +30°

Vertical Rotation Angle

-90° / +90°

Height Adjustment

130 mm (5.12")

Product Dimensions

613.7 mm × 366.7 mm × 52.7 mm (24.16" × 14.44" × 2.07") (W × H × D), without wall-mount bracket

Package Size

698 mm × 481 mm × 193 mm (27.48" × 18.94" × 7.60") (W × H × D)

Unilateral Splicing

U/L/R/D: 2.7 mm/2.7 mm/2.7 mm/20.0 mm

Net Weight

5.4 kg (11.91 lb)

Gross Weight

7.6 kg (16.76 lb)

Casing Color

Black

Control Mode

Five-button

Status Indicator Light

Yes

Wall Mount VESA

100 mm × 100 mm (3.94" × 3.94")

Accessory

Power cord, Power adapter, base, HDMI cable, TYPE-C cable, user's manual (QR code), QSG, legal and regulatory information, etc.
