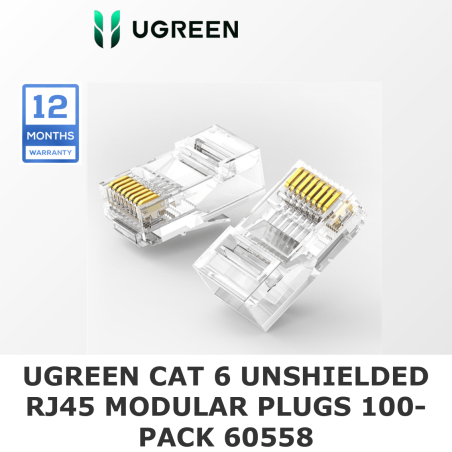

UGREEN NW120 Cat6 RJ45 Unshielded Connector

In-Depth Details

1. Connector Type and Category

The UGREEN NW120 RJ45 Connector is specifically designed for Category 6 Ethernet cables, supporting speeds up to 1 Gbps and higher, depending on the installation environment. It uses the RJ45 interface which is standard for Ethernet networking and supports 8-pin connections (8P8C).

2. Unshielded Twisted Pair (UTP) Design

This connector is unshielded, meaning it is optimized for standard home, office, or small business installations where electromagnetic interference (EMI) is minimal. UTP designs are more affordable and easier to install compared to shielded counterparts.

3. Build Quality and Materials

• Gold-Plated Contacts: Features 3-micron gold-plated pins that ensure reliable contact and prevent corrosion, which is critical for maintaining a stable network connection over time.

• Durable Housing: Made from transparent polycarbonate, which offers clarity for verifying wire order and provides good mechanical strength during crimping.

4. Cable Compatibility

• Supported Cable Gauge: Compatible with both solid and stranded Cat6 cables ranging from 23AWG to 26AWG.

• Versatile Use: Suitable for creating custom Ethernet cables, either for new installations or repair work.

5. Wiring Standards

Supports both T568A and T568B wiring schemes, allowing it to integrate seamlessly into existing networks or be used for crossover cables, depending on wiring configuration.

6. Application Areas

Ideal for:

• Patch cables for routers, switches, and modems

• Home and office network setups

• Structured cabling systems

• LAN installations requiring custom cable lengths

7. Installation

• Requires a standard RJ45 crimping tool for termination.

• Transparent housing allows visual verification of wire sequence before crimping.

• The precision-engineered pin layout ensures even contact pressure and low signal loss.

Conclusion

The UGREEN NW120 Cat6 RJ45 Unshielded Connector (60558) is a high-quality, reliable solution for those needing to terminate Cat6 Ethernet cables in environments where EMI is not a concern. With durable materials, compatibility with a range of wire gauges, and support for industry-standard wiring schemes, it offers both performance and ease of use for professionals and DIY users alike.
