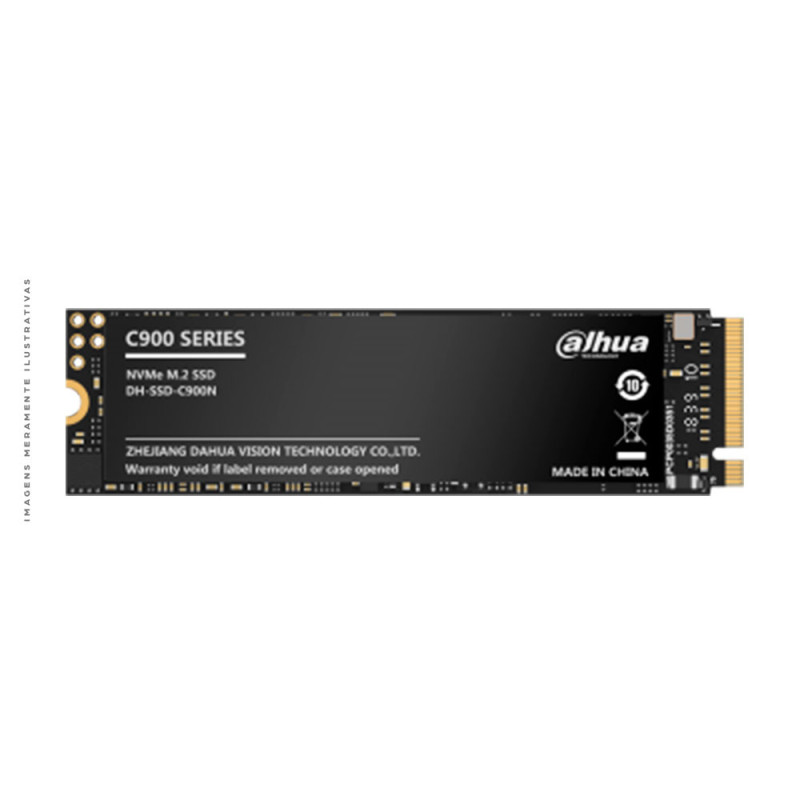

DHI-SSD-C900NVE1TB Dahua 1TB NVMe M.2 PCIe Gen 3.0x4 2230 SSD - Read Speed 3400MB/s write speed 3000 MB/s
search
  • DHI-SSD-C900NVE1TB Dahua 1TB NVMe M.2 PCIe Gen 3.0x4 2230 SSD - Read Speed 3400MB/s write speed 3000 MB/s

DHI-SSD-C900NVE1TB Dahua 1TB NVMe M.2 PCIe Gen 3.0x4 2230 SSD - Read Speed 3400MB/s write speed 3000 MB/s

KES13,500.00

Key Features

  • High-Speed Performance:
    Up to 3400 MB/s Read and 3000 MB/s Write speeds.

  • Compact 2230 Form Factor:
    Ideal for ultrabooks, mini PCs, tablets, and embedded devices.

  • Interface:
    NVMe PCIe Gen 3.0 x4 – delivering faster data transfer than SATA-based SSDs.

  • Reliability:
    MTBF of up to 1.5 million hours and robust NAND flash memory technology.

  • Power Efficiency:
    Lower power consumption compared to traditional SSDs.

Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

In-depth Technical Specifications

Performance

  • Sequential Read Speed: Up to 3400 MB/s

  • Sequential Write Speed: Up to 3000 MB/s

  • Interface Protocol: NVMe 1.3 via PCIe Gen3 x4 lanes

  • Random Read (IOPS): Up to 310K

  • Random Write (IOPS): Up to 280K

These performance figures enable rapid boot times, faster game and application loading, and efficient file transfers—making it suitable for high-performance computing tasks.

Form Factor and Dimensions

  • M.2 Size: 2230 (22mm x 30mm)

  • Weight: Approx. 6 grams

The 2230 form factor is significantly smaller than the typical 2280 size, making this SSD particularly suited for devices with space constraints such as ultrabooks and handheld PCs.

Reliability and Endurance

  • TBW (Terabytes Written): Approximately 600 TBW (varies slightly by production batch)

  • MTBF (Mean Time Between Failures): Up to 1.5 million hours

  • Error Correction: LDPC (Low-Density Parity-Check) ECC support for enhanced data integrity

  • Data Protection: End-to-End (E2E) Data Path Protection & Static and Dynamic Wear Leveling

These features contribute to long-term durability and consistent performance even under intensive use.

Power Efficiency

  • Active Power Consumption: Approx. 2.5W–3.5W

  • Idle Power Consumption: Typically below 0.5W

This makes the SSD highly energy efficient, improving battery life in portable devices without compromising performance.

Environmental Specifications

  • Operating Temperature: 0°C to 70°C

  • Storage Temperature: -40°C to 85°C

  • Shock Resistance: 1500G/0.5ms

  • Vibration Resistance: 10~2000Hz, 1.5G

Built to endure rugged environments, this SSD is ideal for both consumer and industrial applications.

Use Case Suitability

  • Laptops and Ultrabooks

  • Handheld PCs

  • Tablets with M.2 2230 Slots

  • Embedded Systems

  • Mini PCs and HTPCs

Due to its compact size and high-speed performance, the DHI-SSD-C900NVE1TB is particularly effective in devices where space is at a premium but speed and endurance cannot be compromised.

Conclusion

The Dahua DHI-SSD-C900NVE1TB 1TB NVMe SSD offers a compelling mix of high performance, compact form factor, and solid reliability. With read/write speeds rivalling premium SSDs and robust thermal and power management, it is a strong choice for anyone upgrading compact or high-efficiency systems.
