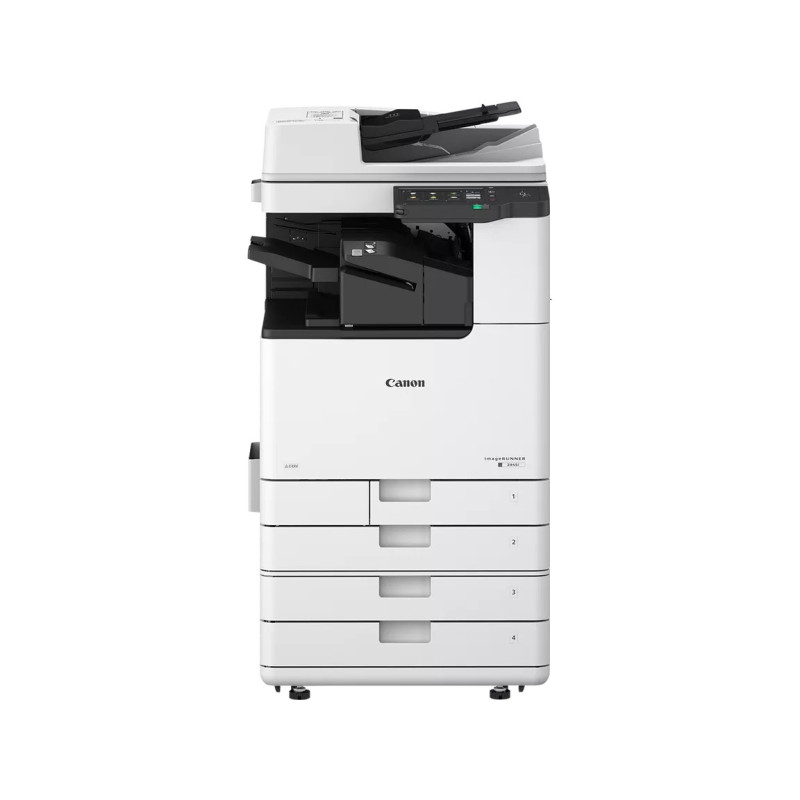

Canon ImageRunner 2930( Without Toners )

Specifications in detail

Main Unit

• Machine Type
  A3 Monochrome Laser Multifunctional
• Core Functions
  Print, Copy, Scan, Send and Optional Fax
• Processor Speed
  1.6GHz Dual Core Processor
• Control Panel
  Standard: 7 inch TFT LCD WVGA Colour Touch panel
• Memory
  Standard: 2.0GB RAM
• Storage
  Standard: 64GB eMMC
  Optional: 256GB SSD
• Interface Connection
  NETWORK Standard:
  1000Base-T/100Base-TX/10-Base-T, Wireless LAN (IEEE 802.11 b/g/n), Wi-Fi Direct Connection
  OTHERS Standard:
  USB 2.0 (Host) x2, USB 2.0 (Device) x1
• Paper Input (Standard)
  Paper Input (Standard)
• Paper Supply Capacity (A4, 80 gsm)
  Standard: 1,200 sheets
  Maximum: 2,300 sheets (with Cassette Feeding Unit-AW1)
• Paper Output Capacity (A4, 80 gsm)
  Standard: 250 sheets
  Maximum: 645 sheets (with Inner Finisher-L1 and Copy Tray-T2)
• Finishing Capabilities
  Collate, Group, Offset, Staple, Hole Punch, Eco Staple, Staple On Demand¹
• Supported Media Types
  Main Body Cassette (Upper/Lower):
  Thin, Plain, Recycled, Color, Heavy, Bond, Pre-Punched, Letterhead, PostCard

  Multi-purpose Tray:
  Thin, Plain, Recycled, Color, Heavy², Bond, Pre-Punched, Letterhead, PostCard, Labels, Coated, Tracing
• Supported Media Sizes
  Upper Cassette:
  Standard size: A4, A5, A5R, A6R, B5
  Custom Size: 105.0 x 148.0 mm to 297.0 x 215.9 mm

  Lower Cassette:
  Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, COM 10 No. 10*, Monarch*, DL*

  Custom Size: 105 x 148 mm to 304.8 x 457.2 mm

  *Requires Envelope Attachment A (std)
• Supported Media Weights
  Main Body Cassette (Upper/Lower): 52 to 256 gsm

  Multi-purpose tray: 52³ to 300 gsm

  Duplex: 52 to 220 gsm
• Warm-up Time
  4 Seconds or Less⁴

  From Sleep Mode: 10 seconds or less

  From Power On: 10 Seconds or Less⁵
• Dimensions (W x D x H)
  565 x 693 x 852 mm
• Installation Space (W x D)
  1,286 x 1,122 mm (with DADF-AZ2 + Inner Finisher tray max extended + Copy Tray-T2 max extended + paper cassette opened）
• Weight
  Approx. 65 kg

Print Specifications

• Print Speed
  Up to 30 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)
• Print Resolution (dpi)
  Up to 1200 x 1200
• Page Description Languages
  Standard: UFRII, PCL6,
  Optional: Adobe^® PostScript^®3TM
• Double-Sided Printing
  Yes
• Direct Print
  PDF, EPS, TIFF/JPEG, XPS
• Mobile / Cloud Printing
  AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print by Microsoft⁶
• Fonts
  PS fonts: 136 Roman
  PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T⁷1 (Japanese, Korean, Simplified and Traditional Chinese) , Barcode fonts⁸2
• Print Features
  Secure Print, Secure Watermark, Header/Footer, Page Layout, Duplex Printing, Mixed Paper Sizes/ Orientations, Toner Reduction, Poster Printing, Forced hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer
• Operating Systems
  UFRII: Windows^® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, Mac OS X (10.13 or later)
  PCL: Windows^® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022
  PS: Windows^® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, Mac OS X (10.13 or later)
  PPD: Windows^® 10/11, Mac OS X (10.13 or later)

Copy Specifications

• Copy Speed
  Up to 30 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)
• First-Copy-Out Time
  7 seconds
• Copy Resolution (dpi)
  600 x 600
• Multiple Copies
  up to 999 copies
• Copy Density
  Automatic or Manual (9 Levels)
• Magnification
  25% - 400% (1% Increments)
• Preset Reductions
  25%, 50%, 70%, 100% (1:1), 141%, 200%, 400%
• Preset Enlargements
  25%, 50%, 70%, 100% (1:1), 141%, 200%, 400%
• Basic Copy Features
  Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Sort, Job Build, N on 1, Different Size Originals, Sharpness, Erase Frame, Copy ID Card, Skip Blank Pages, Free Size Original, Color Mode, Reserved copy, Copy Sample

Scan Specifications

• Type
  Color Scanner
• Pull Scan Specifications
  Colour Network ScanGear2. For both TWAIN and WIA Supported OS:
  Windows^® 10/11/Server2012/Server2012 R2/Server 2016/Server 2019/Server202
• Scan Resolution (dpi)
  Scan for Copy: 600 x 600
  Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600
  Scan for Fax: 600 x 600
• Document Feeder Paper Capacity (80 gsm)
  up to 50 sheets
• Acceptable Originals/Weights
  Platen: Sheet, Book, 3-Dimensional Objects
  Document Feeder sheet media weight:
  1-sided scanning: 38 to 128 gsm (BW/CL)
  2-sided scanning: 52 to 128 gsm (BW/CL)
• Supported Media Sizes
  Platen: max. scanning size: 297.0 x 431.8 mm
  DADF: A3, A4, A4R, A5, A5R, B4, B5, B5R,
  Custom size: 148.0 x 128.0 mm to 297.0 x 431.8 mm
• Scan Method
  Push Scan, Pull Scan, Scan to Network, Scan to USB Memory Key, Scan to Mobile device, Scan to cloud-based services (uniFLOW Online)
• Scan Speed
  1-sided Scanning: 35/25 (300 x 300 dpi, send), 25/- (600 x 600 dpi, copy) 2-sided Scanning: 12/8 (300 x 300 dpi, send), 8/- (600 x 600 dpi, copy)
• Double-Sided Scanning
  Yes

Send Specifications

• Optional / Standard
  Standard
• Destination
  Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV,
  Optional: Super G3 FAX
• Address Book / Speed Dials
  LDAP (2,000)/ Local (1,600) /Speed dial (200)
• Send Resolution (dpi)
  Push: up to 600 x 600
  Pull: up to 600 x 600
• Communication Protocol
  FTP (TCP/IP), SMB3.0 (TCP/IP), WebDAV
  Email/iFax: SMTP(send), POP3(receive)
• File Format
  Standard: TIFF (MMR), JPEG {foot}, PDF (Compact, Searchable, PDF/A-1b, Encrypted), XPS (Compact, Searchable), PDF/XPS (Device Signature, Office Open XML (PowerPoint, Word)
  Optional: PDF (Trace & Smooth), PDF/XPS (User Signature)
• Universal Send Features
  Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation

Fax Specifications

• Optional / Standard
  Optional
• Maximum Number of Connection Lines
  1
• Modem Speed
  Super G3: 33.6 kbps
  G3： 14.4 kbps
• Compression Method
  MH, MR, MMR, JBIG
• Resolution (dpi)
  200x100dpi (Standard), 200x200dpi (Fine), 200x400 dpi (Super Fine), 400x400 dpi (Ultra Fine)
• Sending/Receiving Size
  Sending: A3, A4, A4R, A5*1, A5R*1, B4, B5*2, B5R*1
  Receiving: A3, A4, A4R, A5R, B4, B5, B5R

  *1 Sent as A4.
  *2 Sent as B4 short.
• FAX Memory
  Up to 30,000 pages (2,000 jobs)
• Speed Dials
  Max. 200
• Group Dials/Destinations
  Max. 199 dials
• Sequential Broadcast
  Max. 256 addresses
• Memory Backup
  Yes
• Fax Features
  Sender's Name (TTI), Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Finished Stamp, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Sub-address Sending, Confidential Mailbox

Store Specifications

• Memory Media
  Standard: USB Memory

Security Specifications

• Authentication & Access Control
  User Authentication(Picture Login, Picture and PIN Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication(Depertment ID and PIN Login, Function Level Login), uniFLOW Online (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Depertment ID and PIN Login, Function Level Login), Access Management System(Access Control)
• Network Security
  TLS 1.3, IPSec, IEEE802.1X authentication, SNMPv3, Firewall, Functionality(IP/MAC Address Filtering), WPA3 support (Wi-Fi), Dual Network Support(Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Enabling/Disabling(Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception
• Document Security
  Print Security(Secure Print, Encrypted SecurePrint, Forced Hold Printing, uniFLOW Secure Print⁹1), Receive Data Security(Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS¹⁰2), Send Data Security(Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support)
• Device Security
  Standard Storage Initialize, Job Log Conceal Function, Checking MFP Software Integrity, (Verify System at Startup, Automatic Recovery, Runtime Intrusion Detection)
• Device Management & Auditing
  Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Security Policy Setting, Remote Management Two-factor Authentication

Environmental Specifications

• Operating Environment
  Temperature: 10 to 30 °C (50 to 86 °F)
  Humidity: 20 to 80 % RH (Relative Humidity)
• Power Source
  EUR: 220-240V 50/60Hz 10A
• Power Consumption
  Maximum: Approx. 1,500W
  Copying (with DADF continuous scan): Approx. 666W (220-240V) *1
  Standby: Approx. 28.1W (220-240V) *1
  Sleep Mode: Approx. Wired LAN: 0.8W*2

  *1 Reference value: measured one unit
  *2 0.8W is not available in all circumstances due to certain settings.

  Typical Electricity Consumption (TEC): 0.33 kWh*

  *As per ENERGY STAR Version 3.0

  For detailed information relating to Lot26 regulation, please go to: https://www.canon-europe.com/for_work/lot26/
• Noise Levels
  Sound Power Level (LWA,m)
  Active (BW)(1-sided): 6.4B, Kv 0.3B

  Sound Pressure (LpAm)
  Bystander's position: TBD
  Active(BW/CL)(1-sided): TBD

  *Reference value: measured only one unit with ISO7779, described with ISO9296 (2017)

  *Reference value: measured only one unit with ISO7779, described with ISO9296 (2017)
• Standards
  Blue Angel

Software & Printer Management

• Tracking & Reporting
  uniFLOW Online
• Remote Management Tools
  iW Enterprise Management Console
  eMaintenance
  Content Delivery System
• Scanning Software
  Network ScanGear
• Optimisation Tools
  Canon Driver Configuration Tool

Consumables

• Toner Cartridge/s
  Toner C-EXV 67 Black
• Toner Estimated Yield
  33,000 pages (A4)
  (Estimated @ 6% coverage)

Paper Supply Options

• Cassette Feeding Unit
  Cassette Feeding Unit-AW1:
  Paper Capacity: 550 sheets x 2 (1,100 sheets) (80 gsm)
  Paper Type: Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Pre-punched, Letterhead
  Paper Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R,
  Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm
  Paper Weight: 52 to 256 gsm
  Power Source: From the Main Unit
  Dimensions (W x D x H): 565 x 635 x 248 mm
  Weight: Approx. 16.0 kg

Output Options

• Copy Tray
  Check for impacted products.

  Inner 2way Tray-M1:

  Tray Capacity (with 80 gsm paper):
  Upper tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: 100 sheets
  Lower tray (standard tray): A4, A5, A5R, A6R, B5, B5R: up to 250 sheets
  　　　　　　 SRA3, A3, A4R, B4: up to 100 sheets
  Paper Weight: 52 to 300 gsm
  Dimensions (W x D x H): 428 x 405 x 88 mm
  Weight: Approx. 0.7 kg

  Copy Tray-T2:

  Capacity (80gsm paper):
  A4, A5R, B5, B5R: 100 sheets
  A3, A4R, B4: 65 sheets
  Dimensions (W x D x H): 444 × 373 × 176 mm (attached to the main unit, when the extension tray is extended)
  Weight: 0.5 kg
• Inner Finisher
  Inner Finisher-L1:

  Upper Tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: approx. 45 sheets
  Lower Tray: A4, A5, A5R, B5: approx. 500 sheets
  SRA3, A3, A4R, B4, B5R: 250 sheets
  A6R: 30 sheets
  Envelope: 10 sheets
  Paper Weight: 52 to 300 gsm
  Staple Position: Corner, Double
  Staple Capacity: A4, B5: 50 sheets (52 to 90 gsm)
  A4R: 40 sheets (52 to 90 gsm)
  A3, B4: 30 sheets (52 to 90 gsm
  ) Eco Staple: A3, A4, B4, B5: 10 sheets (52 to 64 gsm)/8 sheets (65 to 81.4 gsm)/6 sheets (82 to 105 gsm)
  Staple On Demand: approx. 40 sheets (80 gsm)
  Dimensions (W x D x H): 727 × 525 × 225 mm (attached to the main unit, when the extension tray is extended)
  Weight: Approx. 9.1 kg
• Inner 2/4 Hole Puncher
  1 product to be migrated.
• Inner 4 Hole Puncher
  Inner 2/4 Hole Puncher-D1:

  (Requires Inner Finisher-L1)
  Two or Four Holes
  Acceptable Punch Paper Weight: 52 to 300 gsm
  Acceptable Punch Paper Size:
  Two holes: A3, A4, A4R, A5, B4, B5, B5R,
  Four holes: A3, A4

  Inner 4 Hole Puncher-D1:

  (Requires Inner Finisher-L1)
  Acceptable Punch Paper Weight: 52 to 300 gsm
  Acceptable Punch Paper Size:
  A3, A4, A4R, A5, B4, B5, B5R

Hardware Accessories

• Card Readers
  IC Card Reader Attachment-B4
  Attachment kit for Reader-A2

Security Options

• Data Security
  Picture Login-A1

System & Controller Options

• Print Accessories
  PCL International Font Set-A
  PS Printer Kit-BT1
• Send Options
  Universal Send Trace & Smooth PDF Kit-A1
  Universal Send Digital User Signature Kit-C1
• Barcode Printing
  Barcode Printing Kit-D1
• System Accessories
  Copy Control Interface Kit-D1
• Fax Accessories
  Super G3 FAX BD-BN1 EU
  Remote Fax Kit-A1

Other Options

• Staple Cartridge
  Staple-P1
• Accessibility Accessories
  ADF Access Handle-A1
