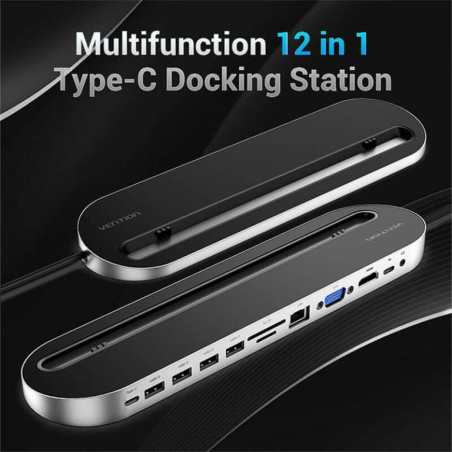

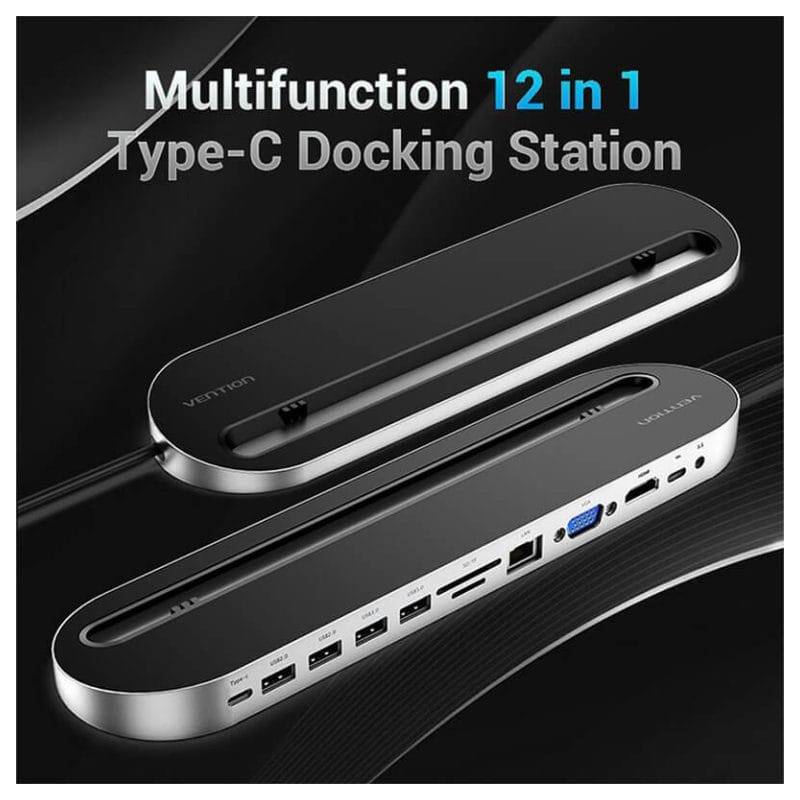

VEN THEBC Vention USB-C MULTI-FUNCTIONAL 12 in 1 DOCKING STATION

In-Depth Details

1. 12-in-1 Port Configuration

The docking station includes the following:

• 1 x HDMI (4K @ 30Hz)

• 1 x VGA (1080p @ 60Hz)

• 1 x Gigabit Ethernet RJ45

• 3 x USB 3.0 (5Gbps data transfer rate)

• 2 x USB 2.0 (ideal for keyboard/mouse)

• 1 x USB-C Power Delivery (PD) Charging (up to 100W)

• 1 x 3.5mm Audio/Mic Combo Jack

• 1 x SD Card Reader

• 1 x TF (MicroSD) Card Reader

These ports collectively allow simultaneous connection to displays, external storage, networks, and peripherals without the need for multiple adapters.

2. Video Output Support

• HDMI Port supports ultra-high-definition video output up to 4K at 30Hz, suitable for streaming, extended display, and presentations.

• VGA Port offers compatibility with older monitors and projectors, outputting resolutions up to 1080p.

Note: When HDMI and VGA are used simultaneously, the output is typically mirrored, not extended, and resolution is limited to 1080p.

3. USB Expansion

• Three USB 3.0 ports enable high-speed file transfers and can be used for external hard drives, flash drives, or other high-bandwidth peripherals.

• Two USB 2.0 ports are ideal for low-data peripherals like keyboards, mice, or printers, ensuring consistent performance without data bottlenecks.

4. SD and TF Card Access

Dual card slots allow fast read/write access for SD and MicroSD cards. Both cards can be read simultaneously, which is ideal for photographers, videographers, and other media professionals.

5. Gigabit Ethernet Port

Provides a stable and high-speed wired network connection, essential in environments where Wi-Fi is unreliable or where secure connections are needed.

6. USB-C Power Delivery

Supports pass-through charging up to 100W, ensuring that the host device (laptop/tablet) remains charged even when multiple peripherals are connected.

7. Audio Support

The 3.5mm audio jack supports both audio output and microphone input. This makes it suitable for headsets used in video conferencing, calls, and multimedia playback.

8. Build Quality and Design

• Aluminum alloy casing provides durability and a premium finish.

• Compact and lightweight design makes it highly portable.

• Integrated overheat protection ensures device longevity and safety.

9. Compatibility

• Compatible with major operating systems including:

  • Windows

  • macOS

  • Linux

  • Chrome OS

  • Android (for supported OTG-enabled devices)

No drivers are required for most devices—true plug-and-play experience.

Ideal Use Cases

• Remote Workstations: Single-cable connection to monitors, Ethernet, and USB devices.

• Creative Professionals: Streamlined access to SD/TF cards, high-speed external drives, and high-resolution displays.

• Business Presentations: Support for VGA and HDMI simplifies connections in varied meeting room setups.

• Education & Learning: Versatile setup for hybrid classrooms, online learning, and device sharing.

Summary

The VEN THEBC Vention USB-C Multi-Functional 12-in-1 Docking Station is a powerful and elegant solution for users seeking a comprehensive, portable expansion hub. With thoughtful port placement, strong build quality, and broad compatibility, it offers performance, convenience, and value for both personal and professional applications.
