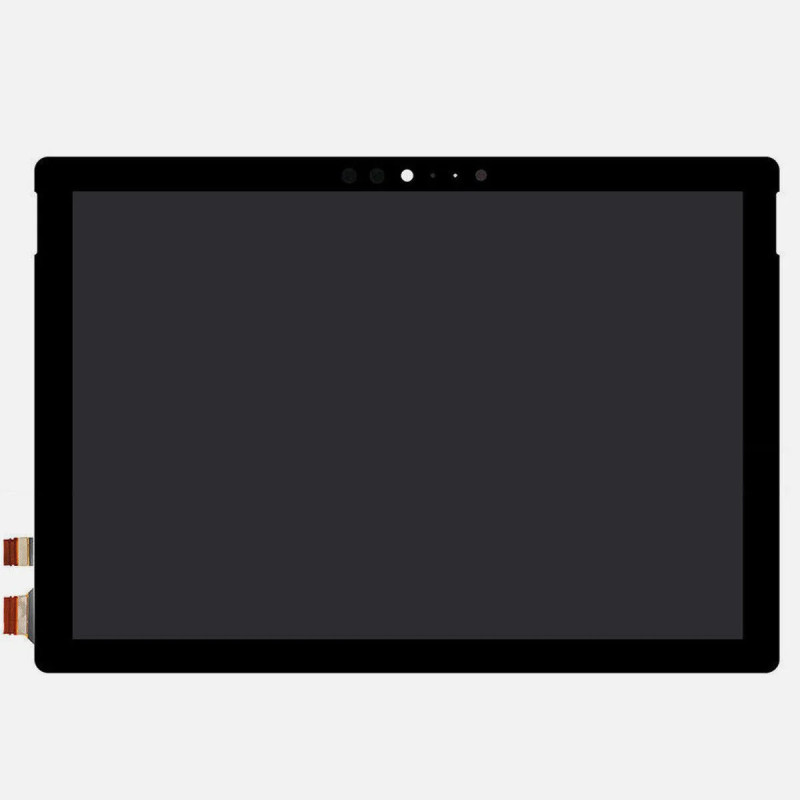

Microsoft pro 6 Touch screen

In-Depth Details

• Model Compatibility: Specifically designed for Microsoft Surface Pro 6, Model 1796 (2018 release). Shares form factor with Surface Pro 5 but differs in internals.

• Display Size: 12.3-inch PixelSense touchscreen with a 3:2 aspect ratio for balanced productivity and creative use.

• Resolution: 2736x1824 pixels (267 PPI), providing ultra-sharp text and high detail for photo, design, and business work.

• Touch and Pen Support:

  • 10-point capacitive multi-touch

  • Supports Surface Pen (4096 pressure levels) with tilt functionality for drawing and note-taking

• Assembly Includes:

  • IPS LCD screen

  • Digitizer (touch layer)

  • Front Gorilla Glass

  • All pre-fused in a single, factory-laminated unit for reduced glare and higher durability

• Color & Brightness:

  • Rich color reproduction with sRGB gamut support

  • Brightness rated around 430–450 nits, suitable for most lighting environments

• Camera and Sensors:

  • Includes cutouts for 5MP front camera, Windows Hello IR sensor, ambient light sensor, and dual microphones

• Connectors & Build:

  • Uses Microsoft’s custom flex ribbon cable—sensitive and precise alignment required

  • Professional installation is recommended due to adhesive sealing and heat-based removal process

• Installation Notes:

  • Front panel is sealed with strong adhesive

  • Tools like heat gun and suction cup needed for removal

  • Replacement adhesive required for reinstallation

• Back Casing: Not included. This is the front display assembly only and does not contain the magnesium back, kickstand, or internals

• OEM Quality: Matches original factory standards for touch responsiveness, brightness, and fit within the Surface Pro 6 frame
