23.8 inch Full HD monitor with slim ultra-narrow bezels and elegant metal base
VA panel with 4000:1 high contrast ratio and wide 178° viewing angles
100 Hz refresh rate with fast 5 ms response time ensures smooth visuals
Built-in 2 × 1 W speakers reduce desk clutter and support multimedia use
Anti-blue-light design with eye protection for extended work sessions
HDMI + VGA + Audio out connectivity supports PCs, laptops and DVR/NVR systems
Efficient power usage with <0.5 W standby and 30,000-hour panel lifespan
Adjustable tilt stand and VESA-ready design with 1-year warranty in Kenya
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)

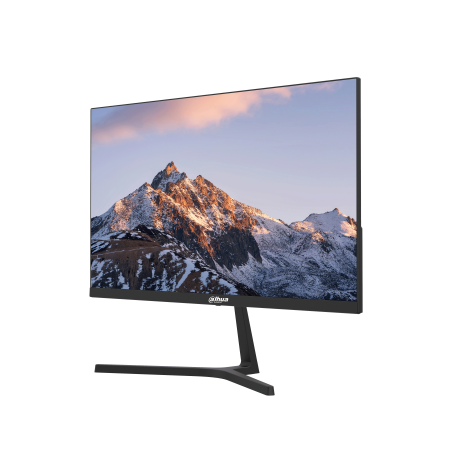

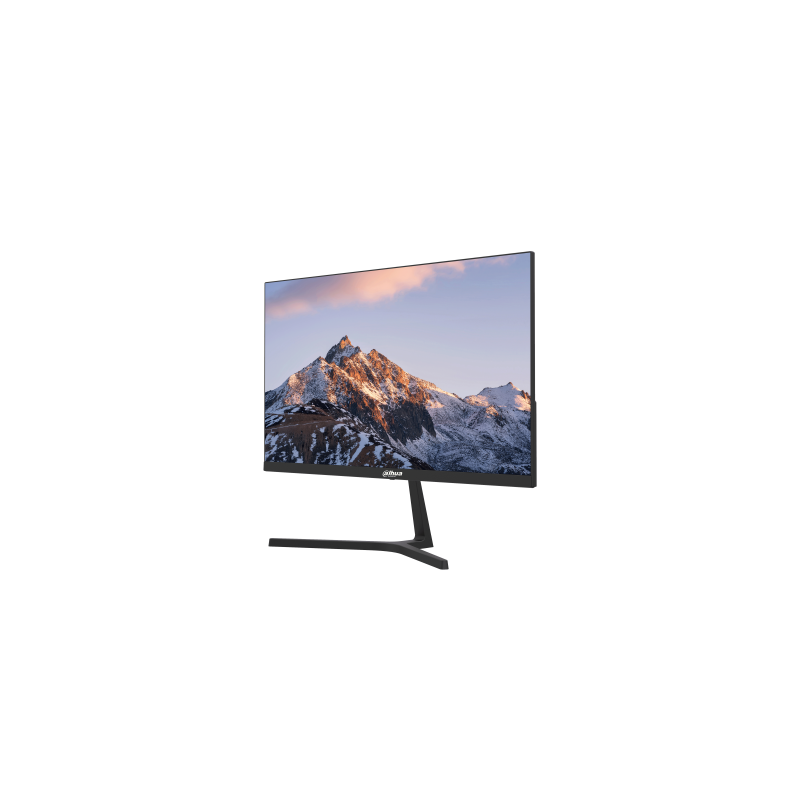

The Dahua B200S 23.8 inch FHD Monitor (DHI-LM24-B200S) is engineered for offices, educational environments, CCTV monitoring and home workstations in Kenya. The design features a slim and minimalist aesthetic with a screen-to-body ratio above 90 percent, enabling seamless dual-screen setups.
The panel delivers crisp, vibrant imagery backed by:
Full HD (1920 × 1080) clarity
4000:1 static contrast ratio for rich blacks and strong shading detail
250 cd/m² brightness suitable for indoor environments
72 percent NTSC color gamut supporting vivid everyday visual content
Anti-blue-light technology for reduced eye fatigue
Surface hardness rated 3H with 25 percent haze treatment to reduce reflections
Smooth motion thanks to 100 Hz refresh and 5 ms overdrive response time
Ultra-thin backlight module within a slim black chassis
Tilt: -5° backward to 15° forward
Wide 178° horizontal/vertical viewing angles
Control interface via five buttons and indicator light
VESA-mountable design when used with aftermarket brackets
Backpanel ports include:
1 × HDMI 1.4 (1080p @ 100 Hz)
1 × VGA
1 × Audio out
Integrated 2 × 1 W speakers enhance media viewing and reduce accessory requirements on the desk.
Low standby power under 0.5 W
Standard consumption approx. 19 W
Operating temperature 0°C to 40°C suitable for typical Kenyan environments
Estimated 30,000-hour panel lifespan contributes to long-term reliability
539.2 × 320.4 × 39.1 mm without mount
Package: 612 × 405 × 101 mm
Net weight: 2.74 kg, easy to reposition on desks
Dahua B200S 23.8’’ Monitor
HDMI cable
Power adapter
Stand and base
Digital user manual (QR code), regulatory documentation
Yes. The display includes 2 × 1 W speakers.
Yes. VGA and HDMI ports allow connection to most DVR/NVR systems.
Yes. HDMI 1.4 supports 1920 × 1080 at 100 Hz.
No. Only tilt adjustment is included, though VESA mounting allows expanded ergonomics.
A local 1-year warranty is provided through Passcode East Africa Techverse Limited.
|
Display |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
DHI-LM24-B200S |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
LCD Technology |
VA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Backlight |
ELED |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screen Size |
23.8 inch |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Aspect Ratio |
16:9 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Viewing Size |
527.04 (H) × 296.46 (V) mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Screen-to-Body Ratio |
≥90% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Viewing Angle |
178° (H) / 178° (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Display Mode |
Horizontal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pixel Pitch |
0.2745 mm × 0.2745 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pixels Per Inch |
92.56 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
1920 (H) × 1080 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Refresh Rate |
100 Hz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Display Color |
16.7M colors |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Color Gamut |
72% NTSC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Brightness |
250 cd/m² (max) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Contrast Ratio |
4000:1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Response Time |
OD 5 ms |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lifespan |
30,000 hrs |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Surface Treatment |
Haze 25%, 3H |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Low Blue Light |
Software blue light protection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Device Ports |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Input Port |
1 × HDMI 1.4 (1920 × 1080@100 Hz), 1 × VGA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Output Port |
1 × Audio out |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Speaker |
2 × 1 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power & Environmental Conditions |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC, 2.5 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
16 W (basic), 19 W (typ.), 21 W (max) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Standby Power Consumption |
<0.5 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
0 °C to +40 °C (+32 °F to +104 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–85% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
5%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Inclined Angle |
-5° / 15° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
539.2 mm × 320.4 mm × 39.1 mm (21.23" × 12.61" × 1.54") (W × H × D), without wall-mount bracket |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Package Size |
612 mm × 405 mm × 101 mm (24.09" × 15.94" × 3.98") (W × H × D) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Unilateral Splicing |
U/L/R/D: 2.1 mm/2.1 mm/2.1 mm/15.9 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
2.74 kg (6.04 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
4 kg (8.82 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Casing Color |
Black |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Control Mode |
Five-button |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Status Indicator Light |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Accessory |
Power adapter, base, HDMI cable, user's manual (QR code), legal and regulatory information, etc. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
