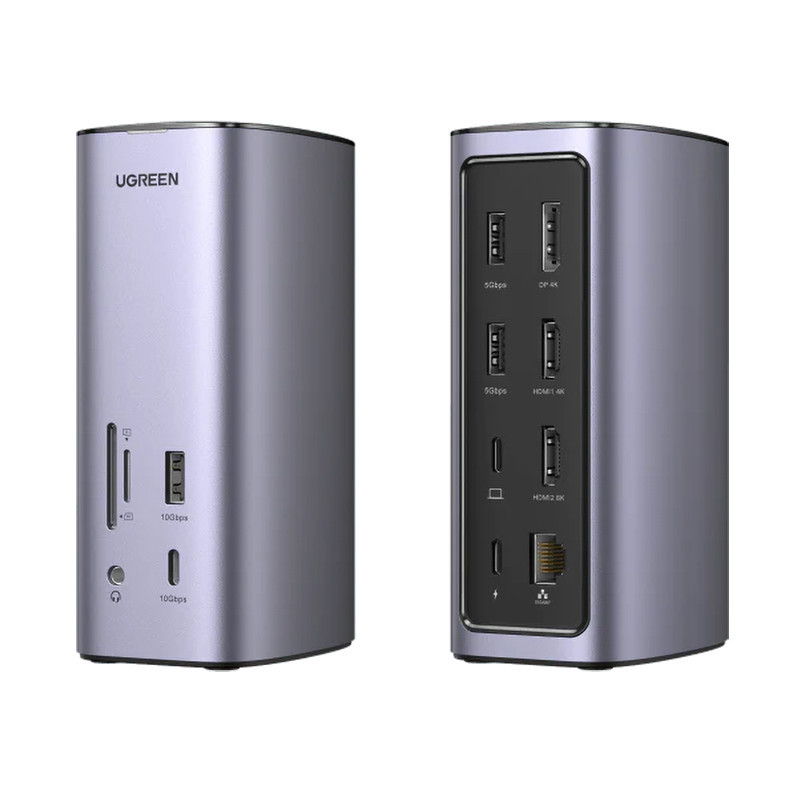

UGREEN CM681 12 In 1 PRO Docking Station

In-depth Details:

1. Video Output Ports

• 2 x HDMI Ports + 1 x DisplayPort (DP):

  • Supports up to triple display when used with compatible devices.

  • Maximum resolution:

    • Single Display: Up to 4K@60Hz (via DP 1.4 & HDMI 2.0)

    • Dual Display: Up to 4K@30Hz

    • Triple Display: 1080p@60Hz for all three monitors.

  • Mirror and Extend Modes supported (note: MacBooks with M1/M2 chips only support mirror mode due to chipset limitations).

2. USB Connectivity

• 2 x USB 3.0 Ports:

  • Transfer speed up to 5Gbps, backward compatible with USB 2.0.

  • Suitable for peripherals like keyboard, mouse, flash drives.

• 1 x USB 3.2 Gen 1 Port:

  • Offers high-speed data transmission with enhanced power output.

  • Ideal for external hard drives and fast data devices.

• 1 x USB-C 3.2 Gen 1 Data Port:

  • Also offers 5Gbps speed.

  • For data transmission only, not for charging or video output.

3. Power Delivery

• 1 x USB-C PD Input Port (100W):

  • Supports Power Delivery 3.0 up to 100W input.

  • Delivers up to 85W to the host device after docking station consumption (~15W).

4. Network Connectivity

• 1 x RJ45 Gigabit Ethernet Port:

  • Supports 10/100/1000 Mbps network speeds.

  • Offers stable and fast wired internet connection, ideal for large file transfers or streaming.

5. Card Readers

• 1 x SD Card Slot + 1 x TF (microSD) Card Slot:

  • Support simultaneous reading.

  • UHS-I speed class: up to 104MB/s transfer rate.

  • Compatible with SD, SDHC, SDXC, microSD, microSDHC, microSDXC cards.

6. Audio Interface

• 1 x 3.5mm Audio Jack:

  • Combines headphone and microphone input/output.

  • Supports headsets with TRRS 3.5mm connectors.

7. Compatibility

• Works with Windows, macOS, Linux, and iPadOS.

• Compatible with Thunderbolt 3/4 and USB-C ports that support DisplayPort Alt Mode and Power Delivery.

• Fully plug-and-play, no driver installation required.

8. Build and Design

• Aluminum alloy casing for heat dissipation and durability.

• Compact, sleek design ideal for desks and travel.

• LED indicator for power/activity.

Ideal Use Cases:

• Expanding laptop connectivity for office productivity.

• Connecting multiple external displays for multitasking.

• Fast data transfer and device charging via USB ports.

• Stable wired network access during high-bandwidth tasks.
