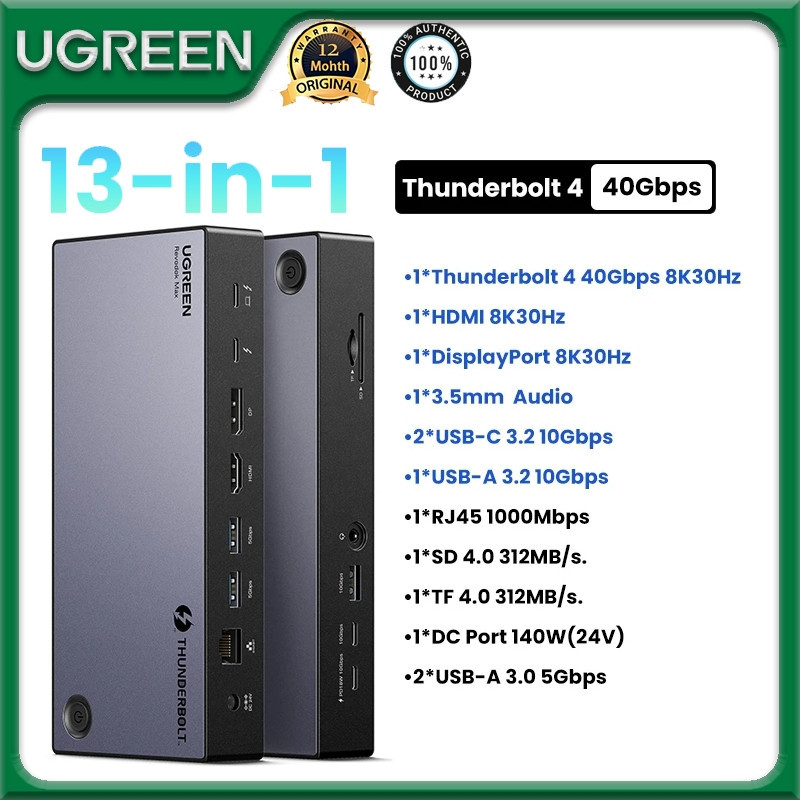

UGREEN U709 Revodok Max 313 Thunderbolt 4 13 -In -1 Docking Station

In-Depth Details

1. Thunderbolt 4 Port (Upstream)

• Supports up to 40Gbps bandwidth

• Capable of dual 4K@60Hz or single 8K@30Hz display output (when paired with compatible host)

• Handles data, video, and charging through one connection

• Provides laptop charging up to 60W (Power Delivery 3.0)

2. Display Outputs

• HDMI 2.1 Port:
  Supports resolutions up to 8K@30Hz or 4K@144Hz, depending on the host system.

• DisplayPort 1.4:
  Also supports 8K@30Hz or 4K@120Hz, with HDR and DSC (Display Stream Compression).

• Thunderbolt 4 Port (Video Output):
  Works with USB-C monitors or can be adapted to HDMI/DP. Supports alternate mode display output.

Note: MacBooks with M1/M2 chips are limited in external display support unless M1 Pro, M1 Max, M2 Pro, etc.

3. USB Ports

• 2 × USB-C 3.2 Gen 2 Ports:
  Up to 10Gbps data transfer speed.

• 2 × USB-A 3.2 Gen 2 Ports:
  Up to 10Gbps, suitable for external SSDs and fast peripherals.

• 2 × USB-A 3.0 Ports:
  Support up to 5Gbps, ideal for keyboards, mice, or USB drives.

4. SD and TF Card Readers (UHS-II / SD 4.0)

• Dual-slot support (read both cards simultaneously)

• Up to 312MB/s transfer speed, optimized for professional photographers or video editors

5. Ethernet Port

• Gigabit Ethernet (RJ45) with stable 1000/100/10 Mbps speeds

• Ensures low-latency and reliable wired network access

6. Power Delivery (PD)

• Supports 60W PD charging via the Thunderbolt 4 upstream port

• Ensures fast and sufficient charging for most USB-C laptops

7. Build and Design

• Aluminum alloy chassis for durability and passive heat dissipation

• Integrated thermal control system (vents + internal layout)

• Compact, desktop-style form factor with anti-slip base

8. Compatibility

• Works with macOS, Windows, and Linux (with Thunderbolt 3/4 or USB4)

• Backward-compatible with USB-C hosts, though bandwidth and display support may vary

• Plug-and-play—no driver required in most OS setups

Use Cases

• Ideal for creators, developers, and professionals who require:

  • Multiple high-res displays

  • Fast file transfers

  • Stable internet

  • Powerful I/O expansion

• Particularly useful for MacBook users, Windows laptops with Thunderbolt 4, and USB4-enabled devices.
