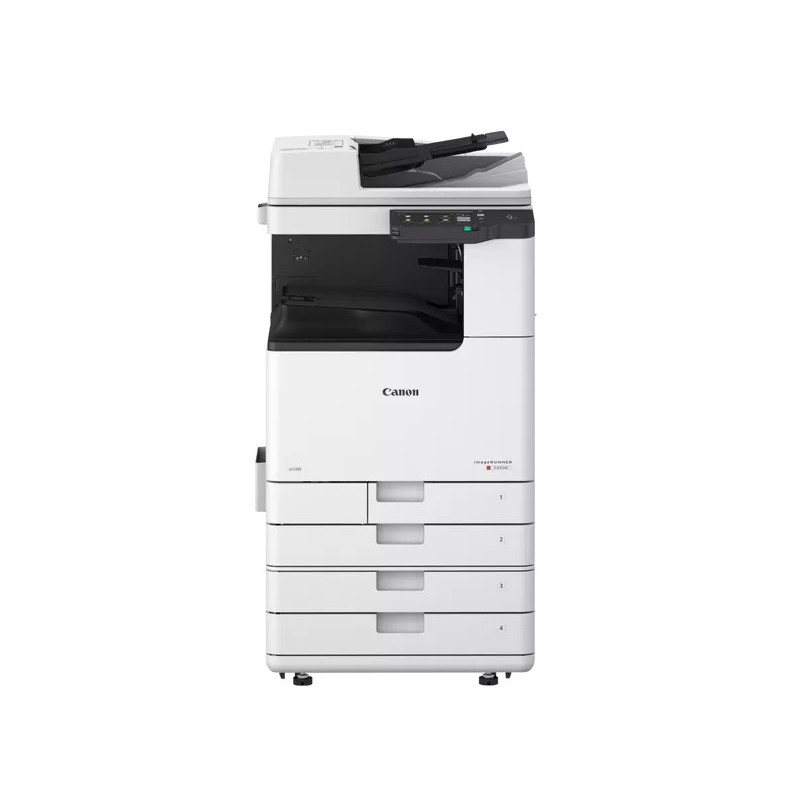

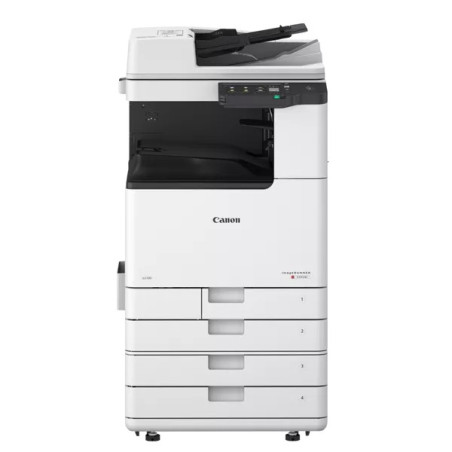

Canon ImageRunner C3326i

Specifications in detail

Main Unit

• Machine Type
  A3 Color Laser Multifunctional
• Core Functions
  Print, Copy, Scan, Send and Optional Fax
• Processor Speed
  1.6 GHz Dual Core Processor
• Control Panel
  17.8 cm/7 inch TFT LCD WVGA Colour Touch panel
• Memory
  Standard: 2.0GB RAM
• Storage
  Standard: (eMMC) 64GB
  Optional: (SSD) 256GB
• Interface Connection
  NETWORK
  Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)

  OTHERS
  Standard: USB 2.0 (Host) x2, USB 2.0 (Device) x1
• Paper Supply Capacity (A4, 80 gsm)
  Standard: 1,200 sheets
  Maximum: 2300 sheets (with optional Cassette Feeding Unit-AW1)
• Paper Output Capacity (A4, 80 gsm)
  Standard: 250 sheets
  Maximum: 650 Sheets (with optional Inner Finisher-L1 and Copy Tray-T1)
• Finishing Capabilities
  Collate, Group, Offset, Staple, Hole Punch, Eco Staple, Staple On Demand

  * Finishing capabilities vary, depending on the options selected
• Supported Media Types
  Multi-purpose Tray:
  Thin, Plain, Heavy*, Recycled, Coated, Color, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Envelope
  * SRA3 is unsupported for Coated (257-300gsm) and Heavy (257-300gsm) paper

  Upper Cassette:
  Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope*
  * Envelope Feeder Attachment Kit B (standard) is required

  Lower Cassette:
  Thin, Plain, Heavy, Recycled, Color, Bond, Transparency, Pre-punched, Letterhead, Envelope*
  *Envelope Feeder Attachment Kit A (standard) is required
• Supported Media Sizes
  Multi-purpose tray:
  Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
  Custom size: 98.4 x 139.7 mm to 320.0 x 457.2 mm
  Envelopes: COM10 No.10, Monarch, ISO-C5, DL
  Envelope custom size: 98.0 x 98.0 mm to 320.0 x 457.2 mm

  Upper Cassette:
  Standard size: A4, A5, A5R, A6R, B5
  Custom Size: 105.0 x 148.0 mm to 297.0 x 215.9 mm
  Envelope: ISO-C5
  * Envelope Feeder Attachment Kit B (standard) is required.

  Lower Cassette:
  Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
  Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm
  Envelopes*: COM10 No.10, Monarch, DL
  * Envelope Attachement Kit A (standard) is required.
• Supported Media Weights
  Multi-purpose tray: 52 to 300 gsm
  Upper/Lower Cassette: 52 to 256 gsm
  Duplex: 52 to 220 gsm
• Warm-up Time
  4 Seconds or Less*
  * Time from device power on to when copy icon appears and is enabled to operate on the touch panel display

  From Sleep Mode: 10 seconds or less

  10 Seconds or Less*
  *Time from device power on, until copy ready (not print reservation)
• Dimensions (W x D x H)
  565 x 687 x 891 mm
• Installation Space (W x D)
  1168 x1116 mm
• Weight
  Approx. 74.7 kg including toner

Print Specifications

• Print Speed
  1-sided (BW/CL):
  Up to 26/26 ppm (A4, A5, A5R,A6R), Up to 20/20 ppm (A4R), Up to 15/15 ppm (A3)

  2-sided (BW/CL):
  Up to 13/13 ppm (A4, A5R), Up to 10/10 ppm (A4R), Up to 7/7 ppm (A3)
• Print Resolution (dpi)
  Up to 1200 x1200
• Page Description Languages
  Standard: UFRⅡ, PCL6
  Optional: Adobe® PostScript®3TM
• Direct Print
  Supported file types:
  RUI: PDF, EPS, TIFF/JPEG, XPS
  USB Memory: PDF, TIFF/JPEG, XPS
  Network Place: PDF, TIFF/JPEG, XPS
• Mobile / Cloud Printing
  AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print by Microsoft

  A range of software solutions is available to provide printing from mobile devices and cloud-based services depending on your requirements. Please contact your sales representative for further information
• OS Standard Printing
  Android/Windows® 10/Windows® 11/Chrome OS/
  macOS (11.2.2 or later), iOS (15.2 or later), iPadOS
• Fonts
  PS fonts: 136 Roman
  PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT
  J/K/S/T*1 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*2

  *1 Requires optional PCL INTERNATIONAL FONT SET-A1
  *2 Requires optional BARCODE PRT KIT-D1
• Print Features
  Secure Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/ Orientations, Toner Reduction, Poster Printing, Forced hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer
• Operating Systems
  UFRII: Windows®10/11/Server 2012/Server 2012 R2/Server 2016/Server 2019/Server 2022, MAC OS X (10.13 or later)

  PCL: Windows®10/11/Server 2012/Server 2012 R2/Server 2016/Server 2019/Server 2022, MAC OS X (10.13 or later)

  PS: Windows®10/11/Server 2012/Server 2012 R2/Server 2016/Server 2019/Server 2022, MAC OS X (10.13 or later)

  PPD: Windows®10/11, MAC OS X (10.13 or later)

Copy Specifications

• Copy Speed
  1-sided (BW/CL):
  Up to 26/26 ppm (A4, A5, A5R, A6R), Up to 20/20 ppm (A4R), Up to 15/15 ppm (A3)

  2-sided (BW/CL):
  Up to 13/13 ppm (A4, A5R), Up to 10/10 ppm (A4R), Up to 7/7 ppm (A3)
• First-Copy-Out Time
  (A4, BW/CL): Approx. 7.0 / 8.7 seconds or less
• Copy Resolution (dpi)
  600 x 600
• Multiple Copies
  Up to 999 copies
• Copy Density
  Automatic or Manual (9 Levels)
• Magnification
  25% - 400% (1% Increments)
• Preset Reductions
  25%, 50%, 70%, 100%, 141%, 200%, 400%
• Preset Enlargements
  25%, 50%, 70%, 100%, 141%, 200%, 400%
• Basic Copy Features
  Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Sort, Job Build, N on 1, Different Size Originals, Sharpness, Erase Frame, Copy ID Card, Skip Blank Pages, Free Size Original, Color Mode, Reserved copy, Copy Sample

Scan Specifications

• Type
  Standard: Duplexing Automatic Document Feeder [2-sided to 2-sided]
  Optional: Platen Cover-Y3
• Pull Scan Specifications
  Color Network ScanGear2. For both TWAIN and WIA

  Supported OS: Windows® 8.1/10/ Server2012/ Server2012 R2/ Server 2016/ Server 2019
• Scan Resolution (dpi)
  Scan for Copy: up to 600 x 600
  Scan for Send:
  (Push,BW) up to 600 x 600, (Pull,BW) up to 600 x 600
  (Push,CL) up to 300 x 300, (Pull,CL) up to 300 x 300

  Scan for Fax: up to 600 x 600
• Document Feeder Paper Capacity (80 gsm)
  Up to 100 sheets
• Acceptable Originals/Weights
  Platen: Sheet, Book and 3-Dimensional objects

  Document Feeder media weights:
  1-sided scanning: 30 to 128 gsm (BW), 64 to 128 gsm (CL)
  2-sided scanning: 50 to 128 gsm (BW), 64 to 128 gsm (CL)
• Supported Media Sizes
  Platen: max. scanning size: 297.0 x 431.8 mm

  Document Feeder media size:

  A3, A4, A4R, A5, A5R, B4, B5, B5R, B6
  Custom size: 128.0 x 139.7 mm to 297.0 x 431.8 mm
• Scan Method
  PushScan, PullScan, Scan to Network, Scan to USB Memory Key, Scan to Mobile device, Scan to cloud-based services (uniFLOW Online)
• Scan Speed
  DADF (ipm: BW/CL, A4):
  1-sided Scanning: 70/70 (300 dpi, send), 51/42 (600 dpi, copy)
  2-sided Scanning: 35/35 (300 dpi, send), 25.5/25.5 (600 dpi, copy)

Send Specifications

• Destination
  Standard: E-mail/Internet FAX (SMTP), SMB3.1.1, FTP, WebDAV,
  Optional: Super G3 FAX
• Address Book / Speed Dials
  LDAP (2,000)/ Local (1,600) /Speed dial (200)
• Send Resolution (dpi)
  Push: 100 x 100, 150 x 150, 200 x 100 (Normal), 200 x 200 (Fine), 200 x 400*(SuperFine), 300 x 300, 400 x400*(UltraFine), 600 x 600*

  Pull: 75 x 75, 100 x 100, 150 x 150, 200 x 200, 300 x 300, 400 ｘ 400*, 600 x 600*

  *color mode is black and white only
• Communication Protocol
  File: FTP (TCP/IP), SMB 3.1.1 (TCP/IP), WebDAV
  Email/iFax: SMTP (send), POP3 (receive)
• File Format
  Standard：TIFF (MMR), JPEG *, PDF (Compact, Searchable, PDF/A-1b, Encrypted), XPS (Compact, Searchable), PDF/XPS (Device Signature, Office Open XML (PowerPoint, Word)

  Optional: PDF (Trace & Smooth), PDF/XPS (User Signature)

  *Single page only
• Universal Send Features
  Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation

Fax Specifications

• Maximum Number of Connection Lines
  1
• Modem Speed
  Super G3: 33.6 kbps
  G3: 14.4 kbps
• Compression Method
  MH, MR, MMR, JBIG
• Resolution (dpi)
  400 x 400 (Ultrafine), 200 x 400 (Superfine), 200 x 200 (Fine), 200 x 100 (Normal)
• Sending/Receiving Size
  Sending: A3, A4, A4R, A5*1, A5R*1, B4, B5*2, B5R*1
  Receiving: A3, A4, A4R, A5R, B4, B5, B5R

  *1 Sent as A4
  *2 Sent as B4 short
• FAX Memory
  Up to 30,000 pages
• Speed Dials
  Max. 200
• Group Dials/Destinations
  Max. 199 dials
• Sequential Broadcast
  Max. 256 addresses
• Memory Backup
  Yes
• Fax Features
  Sender's Name (TTI), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Subaddress Sending, Confidential Mailbox

Store Specifications

• Memory Media
  Standard: USB Memory

Security Specifications

• Authentication & Access Control
  User Authentication (Picture Login, Picture and PIN Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Depertment ID and PIN Login, Function Level Login), Access Management System (Access Control)
• Network Security
  TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, WPA3 support (Wi-Fi), Wired LAN/Wired LAN), Disabling/Enabling (Network Protocols/Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception
• Document Security
  Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*1), Recieve Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS*2), Send Data Security (Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support)

  *1 Requires optional uniFLOW Online / uniFLOW
  *2 Requires optional Universal Send Digital User Signature Kit-C1
• Device Security
  Standard Storage Initialize, Job Log Conceal Function, Protecting MFP Software Integrity, Checking MFD Software Integrity & Platform Firmware Resiliency (NIST SP800-193) with Automatic System Recovery (Verify System at Startup, Automatic Recovery, Runtime Intrusion Detection enabled with McAfee Embedded Control)
• Device Management & Auditing
  Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Security Policy Setting, Remote Management Two-factor Authentication

Environmental Specifications

• Operating Environment
  Temperature: 10 to 30 ºC
  Humidity: 20 to 80% RH (Relative Humidity)
• Power Source
  220-240V 50/60Hz 4A
• Power Consumption
  Maximum: Approx. 1,500 W
  Standby: Approx. 44 W*1
  Sleep mode: Approx. 2.0 W*2, Approx. 1.0 W*3

  *1 Reference value: measured one unit
  *2 Wireless LAN power serve mode OFF
  *3 Wireless LAN power serve mode ON
  *2*3 Sleep mode is not available in all circumstances due to certain settings.

  Typical Electricity Consumption (TEC)*: 0.32 kWh

  *As per US Energy Star 3.0
  For detailed information relating to Erp:Lot6/26 regulation, please go to:
  https://www.canon-europe.com/for_work/lot26/
• Noise Levels
  Sound Power Level (LWA,m)
  Active (1-sided): 6.0 B*1, 0.3B*1

  Sound Pressure Level (LpAm)
  Bystander's position:
  Active (1-sided): 46 dB*1

  *1 Reference value: measured only one unit with ISO7779, described with ISO9296:2017
• Standards
  Blue Angel (Applied for)

Software & Printer Management

• Tracking & Reporting
  uniFLOW Online
• Remote Management Tools
  iW Management Console
  eMaintenance
  Content Delivery System
• Scanning Software
  ScanGear

Consumables

• Toner Cartridge/s
  C-EXV 65 Toner BK/C/M/Y
• Toner Estimated Yield
  (Estimated @ 5% Coverage):

  C-EXV 65 Toner BK: 17,500 pages
  C-EXV 65 Toner C/M/Y: 11,000 pages

Paper Supply Options

• Cassette Feeding Unit
  Cassette Feeding Unit-AW1:

  Paper Capacity: 550 sheets x 2 (1,100 sheets) (80 gsm)
  Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead
  Paper Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R,
  Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm
  Paper Weight: 52 to 256 gsm
  Power Source: From the Main Unit
  Dimensions (W x D x H): 565 x 635 x 248 mm
  Weight: Approx. 16.0 kg
• Paper Feeder
  n/a

Output Options

• Copy Tray
  Copy Tray-T1:

  Capacity (with 80gsm paper):
  A4, A5R, B5, B5R: 100 sheets
  A3, A4R, B4: 75 sheets
  Dimensions (W x D x H): 442 × 373 × 176 mm (attached to the main unit, when the extension tray is extended)
  Weight: Approx. 0.5kg
• Inner Tray
  Inner 2way Tray-M1:

  Tray Capacity (80 gsm paper)
  Upper tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: 100 sheets
  Lower tray (standard tray):
  A4, A5, A5R, A6R, B5, B5R: up to 250 sheets
  SRA3, A3, A4R, B4: up to 100 sheets

  Paper Weight: 52 to 300 gsm
  Dimensions (W x D x H): 428 x 405 x 88 mm
  Weight: Approx. 0.7 kg
• Inner Finisher
  Inner Finisher-L1:

  Tray Capacity (with 80gsm paper):

  Upper Tray:
  A4, A5, A5R, B5: approx. 50 sheets
  SRA3, A3, A4R, A6R, B4, B5R: approx. 50 sheets


  Lower Tray:
  A4, A5, A5R, B5: approx. 500 sheets
  SRA3, A3, A4R, B4, B5R: 250 sheets

  A6R: 30 sheets
  Envelope: 10 sheets
  Paper Weight: 52 to 300 gsm
  Staple Position: Corner, Double
  Staple Capacity:
  A4, B5:
  50 sheets (52 to 90 gsm) A4R:
  40 sheets (52 to 90 gsm)
  A3, B4:
  30 sheets (52 to 90 gsm)

  Eco Staple:
  A3, A4, B4, B5:
  10 sheets (52 to 64 gsm)
  8 sheets (65 to 81.4 gsm)
  6 sheets (82 to 105 gsm)


  Staple On Demand: approx. 40 sheets (80 gsm)
  Dimensions (W x D x H): 575 × 525 × 225 mm (when the extension tray is extended)
  Weight: Approx. 9.1 kg
• Staple Finisher
  n/a
• Booklet Finisher
  n/a
• Inner 2/4 Hole Puncher
  1 product to be migrated.

  Inner 2/4 Hole Puncher-D1 (Requires Inner Finisher-L1):
  Two or Four Holes
  Acceptable Punch Paper Weight: 52 to 300 gsm
  Acceptable Punch Paper Size:
  Two holes: A3, A4, A4R, A5, B4, B5, B5R
  Four holes: A3, A4

  Inner 4 Hole Puncher-D1 (Requires Inner Finisher-L1):
  Four Holes
  Acceptable Punch Paper Weight: 52 to 300 gsm
  Acceptable Punch Paper Size: A3, A4, A4R, A5, B4, B5, B5R

Hardware Accessories

• Card Readers
  Copy Card Reader Attachment-H3
  IC Card Reader Attachment-B3
  Copy Card Reader-F1
  IC Card Reader Attachment-B4
• Others
  Option Attachment kit for Reader-A2
  Platen Cover-Y3

System & Controller Options

• Print Accessories
  PCL International Font Set-A1
  PS Printer Kit-CS1
• Send Options
  Universal Send Trace & Smooth PDF Kit-A1
  Universal Send Digital User Signature Kit-C1
• Barcode Printing
  Barcode Printing Kit-D1
• System Accessories
  Copy Control Interface Kit-D1
  Optional Data Storage Kit-A1
• Fax Accessories
  Super G3 FAX Board-BN1
  Remote Fax Kit-A1

Other Options

• Staple Cartridge
  Staple-P1
• Accessibility Accessories
  ADF Access Handle-A1
  Media Adjustment kit-A1
